Self Service Kiosk

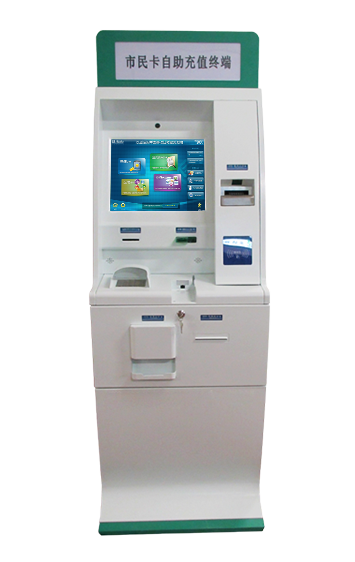

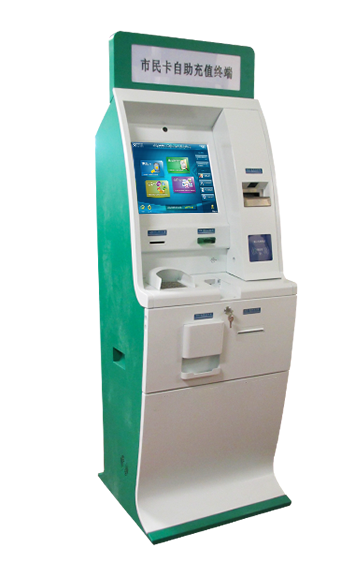

S-ST58M

Components	Description
Industrial Computer	Low power consumption, high performance Industrial PC motherboard
Monitor	17inch
Touch screen	17inch infrared touch screen/ surface Acoustic touch screen

Product Introduction:

S-ST58M kiosk build with the functions that self service payment, recharge, bill printing together. It’s fit to be use office place where with concentrated people. Such as Cinema, railway station etc. .The equipment with the functions as below:

With high performance display monitor, shapely design and powerful PC system, It can highly increase business efficiency, Reduce working staff and cost. Bring a lot convenience for daily life.

Information inquiry
Self service payment( bank card & Cash)
Card reader, pass port scanner
Bill and receipt printing

Product features:

Elegant design, intelligent operation.
Touch screen technology, easy operation friendly interface.
Industry PC host, sensitive response, fast processing speed.
3 DES Encrypted Pin pad, Improve the safety standard.
Self-help operation transaction

Product Series:	Self service kiosk	Model No:	S-ST58M
Components	Description
Industrial Computer	Low power consumption,high performance Industrial PC motherboard
Monitor	17inch
Touch screen	17inch infrared touch screen/ surface Acoustic touch screen
Bank card reader	Support bank cards including magnetic card and IC card
2nd-generation ID card recognition	Public security authentication, identify automatically
Patient ID card	Dynamic, support standard magnetic card、contact IC card、RF card
Encrypted metal keypad	3DES encryption, Security certification of Union pay card terminal, with anti-spy cover
Bank card reader	Dynamic, support all kinds of magnetic card, IC card released by national banks
Dispenser machine	Dispenser patient id card support standard magnetic card, IC card ,RF card
Receipt printer	Thermal, 80mm, remind out of paper function. auto cutter.
Bill printer	Dot matrix printer, 76mm, remind out of paper function. auto cutter.
Cash acceptor	Multi-denomination recognition, four-way banknote insertion, build-in one cash unit with capacity of 1200 bank notes
Camera	Wide-angle camera、anti-explosion exclusive camera for ATM
UPS power	Support PC working in standby model for more than 10 minutes
Time setting module	Set the time of power on and power off computer part, prolong the service time
Door control module	Unauthorized door open action will turn on the alarm, and the alarm information can be uploaded by internet
Dimension	584mm(W)602mm(D)1561mm(H)
Net weight	140KG
Custom Option	The above configuration can be customized
