Ticket Vending Kiosk

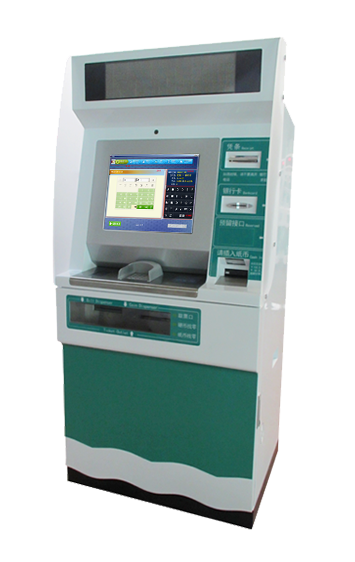

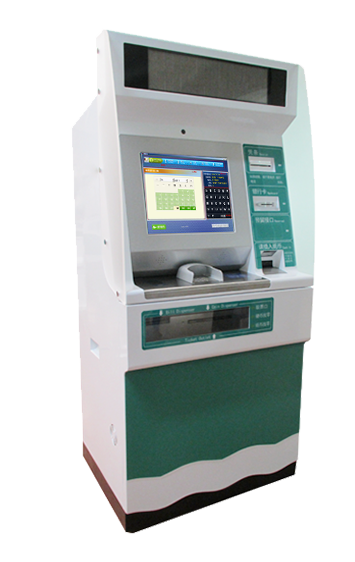

S-ST58C

Components	Description
Industrial Computer	Low power consumption, high performance Industrial PC motherboard
Monitor	19inch
Touch screen	19inch infrared touch screen

Product Introduction:

S-ST58C kiosk mainly focus on tickets vending can be used in the fields such as Scenic spots, cinema, metro station, bus station etc.
The equipment with the functions as below:

With high performance display monitor, shapely design and powerful PC system, It can highly increase the efficiency of ticket vending, Reduce working staff and cost. Bring a lot convenience for daily life.

Information inquiry
Ticket printing
Card reader
Self- help payment( card/ cash)
LED rolled caption advertisement
QR Code scanner

Product features:

Elegant design, intelligent operation.
Touch screen technology, easy operation friendly interface.
Industry PC host, sensitive response, fast processing speed.
3 DES Encrypted Pin pad, Improve the safety standard.
Multi-way payment, makes more and more convenience.
LED advertisement promotion.

Product Series:	Ticket vending kiosk	Model No:	S-ST58C
Components	Description
Industrial Computer	Low power consumption, high performance Industrial PC motherboard
Monitor	19inch
Touch screen	19inch infrared touch screen
Second-generation ID card reader	Public security certification, identify id card automatically
QR code scanner	Scan all kinds of QR code
Bank card reader	Support all kinds of magnetic card of domestic banks
Encrypted metal keypad	3DES encryption, Security certification of Union pay card terminal, with anti-spy cover
Ticket printer	Thermal transfer ribbon printer, Black label detection, automatic feed function
Receipt printer	Thermal, 80mm, remind out of paper function. auto cutter.
Cash acceptor	Multi-denomination recognition, four-way banknote insertion, build-in one cash unit with capacity of 1200 bank notes
Coin acceptor	Multi-denomination recognition
Cash dispenser	High reliability and accuracy, the twice check device to avoid the mistakes
Coin dispenser	Offer Coin change function with different Denomination, fast speed dispensing
Camera	Wide-angle camera、anti-explosion exclusive camera for ATM
LED rolling captions	Red、green、yellow colors rolling captions, promotion, advertisement function
UPS power	Support PC working in standby model for more than 10 minutes
Door control module	Unauthorized door open action will turn on the alarm, and the alarm information can be uploaded by internet
LED rolled caption	3 color LED captions roll advertisement
Time setting module	Set the time of power on and power off computer part, prolong the service time.
Kiosk Cabinet	Durable cold rolled steel, high&Low temperature resistance, slim and smart design, easy to install, Moisture proof, Antirust, Anti-acid, Anti-dust, Static free
Dimension	840mm(W)670mm(D)1830mm(H)
Net weight	138KG
Custom Option	The above configurations can be customized
