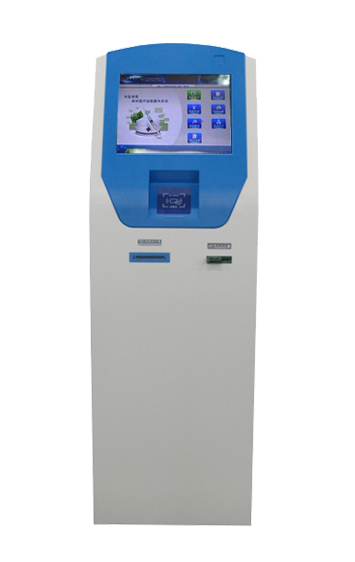

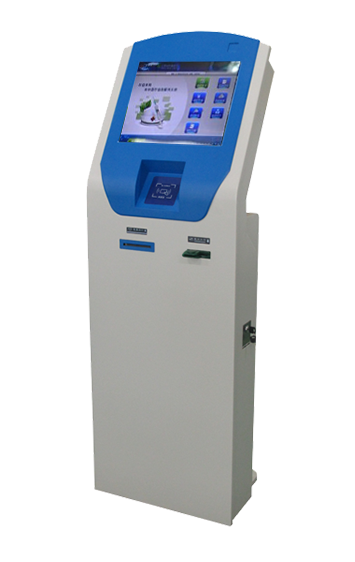

Health Medical Kiosk

S-ST53

Components Description
Industrial Computer Low power consumption, high performance Industrial PC motherboard
Monitor 17inch
Touch screen 17inch surface Acoustic touch screen

  • S-ST53
  • S-ST53
  • S-ST53

Product Introduction:

S-ST53 kiosk is made with the functions as below:

With high performance display monitor, shapely design and powerful PC system. This kind of kiosk save a lot of space on hospital, and also save the purchase cost as one kiosk with multi-function. It is mature and generous on the design and technology. This machine used to raise efficiency of medical treatment. save a lot of time and staff cost and increase a lot on the working efficiency.

  •  Medical card create, recharge and payment.
  •  Registration and queuing function in hospital.
  •  Diagnostic report printing.
  •  Bill of the costs printing.
  •  Hospital guide and Help.
  •  Electronic medical report.
  •  Card reader, Identification of Citizen information.

Product features:

  • Elegant design, intelligent operation.
  • Touch screen technology, easy operation friendly interface.
  • Industry PC host, sensitive response, fast processing speed.
  • 3 DES Encrypted Pin pad, Improve the safety standard
  • Printing the A4 size reports.
  • Recognition citizen ID card
Product features
Product Series: Health kiosk Model No: S-ST53
Components Description
Industrial Computer Low power consumption, high performance Industrial PC motherboard
Monitor 17inch
Touch screen 17inch surface Acoustic touch screen
Medical card reader Supports standard magnetic cards, contactless IC card, RF card
Bank card reader Support bank cards including magnetic card and IC card
ID card reader Republic Security Certification, automatic identification
Encrypted metal keypad 3DES encryption, Security certification of Union pay card terminal, with anti-spy cover
Receipt printer Thermal printer, 80mm, remind out of paper function, auto cutter
Camera Wide-angle camera, anti-explosion exclusive camera for ATM
POS terminal Motor-driven, push-rod design, the POS can be protected very well avoid damaging
UPS power Support PC working in standby model for more than 10 minutes
Kiosk Cabinet Durable cold rolled steel, high &Low temperature resistance, slim and smart design, easy to install, Moisture proof, Antirust, Anti-acid, Anti-dust, Static free
Dimension 420mm(W)*500mm(D)*1500mm(H)
Net weight 60KG
Custom Option The above configuration can be customized
