Ticket Vending Kiosk

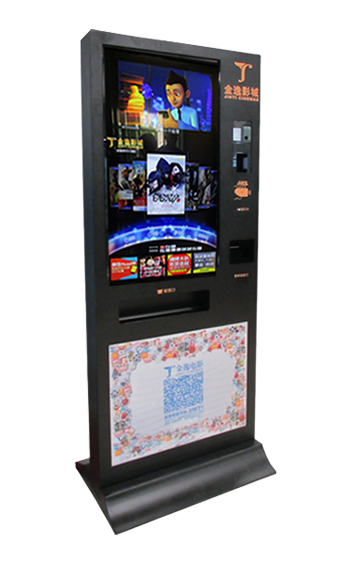

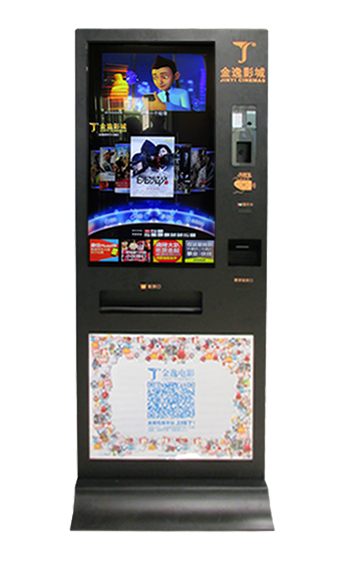

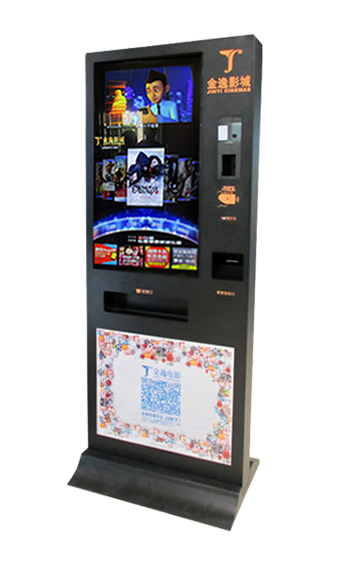

S-ST75

Components	Description
Industrial Computer	Low power consumption, high performance Industrial PC motherboard
Monitor	42inch
Touch screen	42inch infrared touch screen

Product Introduction:

S-ST75 kiosk mainly focus on tickets vending can be used in the fields such as Scenic spots, cinema, metro station, bus station etc.
The equipment with the functions as below:

With high performance display monitor, shapely design and powerful PC system, It can highly increase the efficiency of ticket vending, Reduce working staff and cost. Bring a lot convenience for daily life.

Information inquiry
1.Ticket printing
Card reader
Self- help payment( card/ cash)
LED rolled caption advertisement
QR Code scanner

Product features:

Elegant design, intelligent operation.
Touch screen technology, easy operation friendly interface.
Industry PC host, sensitive response, fast processing speed.
3 DES Encrypted Pin pad, Improve the safety standard.
Multi-way payment, makes more and more convenience.
LED advertisement promotion.

Product Series:	Ticket vending kiosk	Model No:	S-ST75
Components	Description
Industrial Computer	Low power consumption, high performance Industrial PC motherboard
Monitor	42inch
Touch screen	42inch infrared touch screen
Bank card reader	Support bank cards including magnetic card and IC card
ID card reader	μEM4001,compatible with 14443A standard,125khz frequency EM card, ID card, RFID card
IC card reader	Support Mifare standard,frequency:13.56MHz,Philips MF1 S50 IC card
Encrypted metal keypad	3DES encryption, Security certification of Union pay card terminal, with anti-spy cover
Ticket printer	Thermal transfer ribbon printer, Black label detection, automatic feed function
Receipt printer	Thermal, 80mm, remind out of paper function. auto cutter.
UPS power	Support PC working in standby model for more than 10 minutes
LED board	Can change advertising information
Time setting module	Set the time of power on and power off computer part, prolong the service time.
Kiosk Cabinet	Durable cold rolled steel, high&Low temperature resistance, slim and smart design, easy to install, Moisture proof, Antirust, Anti-acid, Anti-dust, Static free
Dimension	800mm(W)535mm(D)1990mm(H)
Net weight	98KG
Custom Option	The above configurations can be customized
