Product Introduction:

Key Features

With powerful functions, instant issuance of ID cards used in various industries

The machine body and the base can be separated, making it convenient for expanding business

Two screens & one multi-color LED light bar

Higher image quality and clearer text

Equipped with one extra screen on the back.

Equipped with LCD touch screen, support handwriting. Equipped with one extra screen on the back, support mirror and extended display with front screen

Indent printing: all characters with indenting are clear and easy to recognize

Embossed printing: safe, wear-resistant and clear text

More Value- added Functions

Automatic card feeding

Support Manual Card Feeding

Card holding function, Automatic card-swallowing function while take card timeout

Available to set the length of card-output and time of automatic card-swallowing

Product features:

Driver: support Windows XP/7/8/10/11, Windows Server 2003/2008/2012/2016,Linux, Android
Card design software: ICARDE, support Windows XP/7/8/10/11
Concise design, friendly operation, powerful function
Databases connection available, completely independent intellectual property rights

Specifications

Product Name	Portable Card Dispenser
Product Model	Seaory E300
Printed by card printer(dye sublimation)	Dye-sublimation(Direct-to-card), Indenting：Physical pressing
Print Resolution	300dpi × 300dpi，300dpi × 600dpi，300dpi × 1200dpi
Printing Module (Top Module)	Dual-sided printing	Dual-sided printing + indenting
Indented Characters	Not Supported	CVV2 code(10 digits from 0 to 9)
Embossing & Indenting Module(Bottom Module)	Embossing/indenting wheel: support 75 characters, including10 blank characters. Embossing characters: Farrington 7B (0-9), OCR-B upper-case alphabet & digits & symbols(0-9, A-Z，& / . , ' -). Foil stamping: support gold/silver or other colors as you choose.
Print Speed	Monochrome printing: 4s per card(single-sided) Full-color YMCKO printing: 20s per card(single-sided), 42s per card(dual-sided) Card issuance duration : 27s to 120s (including Monochrome/ full-color YMCKO/Magnetic stripe/Chip card/ Embossing/ Indenting/Foil stamping) which same as the standard issuing time of bank/credit cards	Monochrome printing: 4s per card(single-sided) Full-color YMCKO printing: 20s per card(single-sided)，42s per card(dual-sided) Card issuance duration : 27s to 120s (including Monochrome/ full-color YMCKO/Magnetic stripe/Chip card/ Embossing/ Indenting/Foil stamping) which same as the standard issuing time of bank/credit cards
Input hopper capacity	100 cards (0.76mm)
Reject tray capacity	With one reject card hopper for both the portable machine and the base: 30 cards(0.76mm)
Card Material	PVC cards, Composite cards(PVC+PET), rewritable cards
Card Size	ISO CR80（53.98mm×85.60mm）
Card Thickness	0.254mm—1.05mm
Operating System	Windows，Android，Linux, or Windows+Android
Hardwares	Hardwares adaptation according to the operating system and related requirements

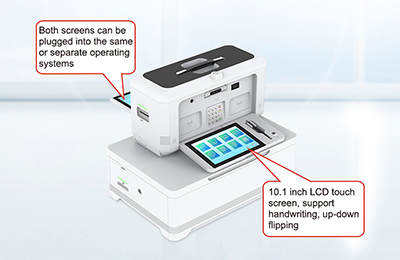

Front Screen(Primary screen)	10.1 inch LCD touch screen, support handwriting, up-down flipping
Back Screen(Optional)	10.1 inch LCD touch screen, support mirror and extended display with front screen

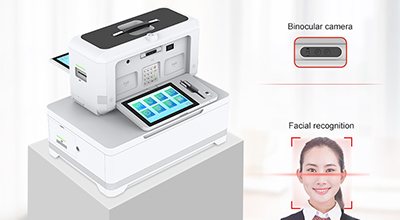

Optional Multi-function Module	1.RFID card reading 2.Mental PIN pad: support on-board encryption & 3DES encryption 3.Fingerprint module: support fingerprint acquisition, feature processing, fingerprint comparison, etc. 4.Binocular camera: facial recognition, face liveness detection(optional), facial comparison(optional), etc. 5.Environmental camera: monocular camera for environmental monitoring 6.Chip card encoding module: contactless & contact dual interface encoding, ISO7816/ISO14443 TYPE A/B; PC/SC 7.Magnetic stripe card encoder: support ISO7811 hico&Loco 1/2/3 tracks encoding 8.Barcode scanner: support barcode, QR code reading 9.WIFI: Dual-band 2.4G/5G, IEEE 802.11b/g/n; network speed: 300Mbps 10.Bluetooth: bluetooth 4.0 or above (as you choose), transmission distance 6-10 meters 11.Remote communication module: 4G or 5G remote communication module (as you choose), acess Internet by plugging in a SIM card
Indicator Lights	LED light bar: 3 colors to choose (blue/green/red). Indicator lights near the output slot of the card printing module(top module): green. Indicator lights near the output slot of the embossing & indenting module(bottom module): green. Developer package supplied, support adjusting lightness level and flashing.
Software	According to operation system and customer needs, all the related Software Development Kits are able to be provided, including demos and code examples
Power Supply	Power adapter，AC100-240V 50/60Hz， DC24V 15A
Dimensions & Weight	625mm(L)×406mm(W)×494.5mm(H)，27.2kg(with 2 panels and 2 touch screens)
Security	Locks in the top module: protect cards,ribbons, 4G/5G chips and reject tray from being stolen. Locks in the bottom module: protect indenting ribbons, foil stamping ribbons, and reject tray from being stolen.
Operating environment	1. Regular Running Temp: 15℃-30℃(59-86℉), 20%-65% RH non-condensing> 2. Lowest/ Highest Running Temp: 0℃(32℉)/40℃(104℉), 20% to 65% RH non-condensing
Storage Environment	Temp.: -5℃-70℃(23-158℉), 20% to 70% RH non-condensing and ventilation environment
