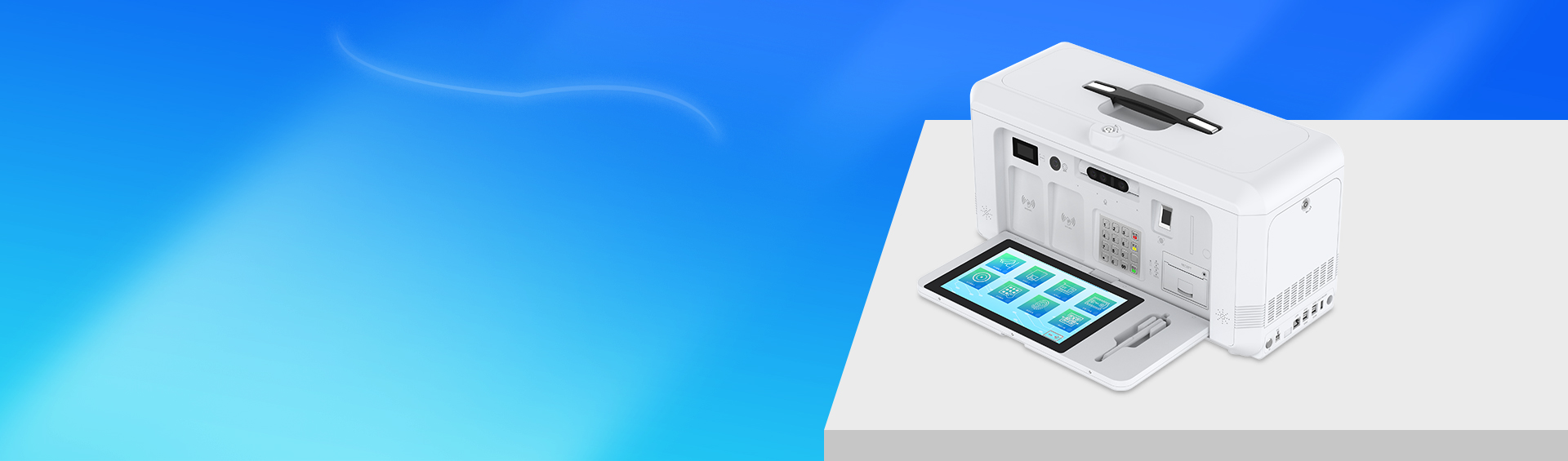

Product Introduction:

Key Features

High-resolution dye-sublimation(direct-to-card) printing technology

Higher image quality and clear text

High-speed of continuous printing, lightweight, simple operation and maintenance

High-speed printer engine

Equipped with LCD touch screen, support handwriting.

Equipped with one extra screen on the back, support mirror and extended display with front screen

Support dual-sided printing (optional)

Indent printing, all characters with indenting are clear and easy to recognize

More Value- added Functions

Automatic card feeding

Support Manual Card Feeding

Card holding function, Automatic card-swallowing function while take card timeout

Available to set the length of card-output and time of automatic card-swallowing

Product features:

Driver: support Windows XP/7/8/10/11, Windows Server 2003/2008/2012/2016,Linux, Android
Card design software: ICARDE, support Windows XP/7/8/10/11
Concise design, friendly operation, powerful function
Databases connection available, completely independent intellectual property rights

Specifications

Product Name	Portable Card Dispenser
Product Model	Seaory E80E
Print Technology	Dye-sublimation(Direct-to-card), Indenting：Physical pressing
Print Resolution	300dpi × 300dpi，300dpi × 600dpi，300dpi × 1200dpi
Printing Module	Single-sided printing	Dual-sided printing	Single-sided printing + indenting	Dual-sided printing + indenting
Indented Characters	Not Supported	Not Supported	CVV2 code(10 digits from 0 to 9)
Print Speed	Monochrome printing: 4s per card Full-color YMCKO printing: 20s per card	Monochrome printing: 4s per card(single-sided) Full-color YMCKO printing: 20s per card(single-sided), 42s per card(dual-sided)	Monochrome printing: 27s per card for single-sided on the front + indenting on the rear side Full-color YMCKO printing: 42s per card for single-sided on the front + indenting on the rear side	Monochrome printing: 27s per card for single-sided on the front + indenting on the rear side Full-color YMCKO printing: 42s per card for single-sided on the front + indenting on the rear side, 42s per card(color dual-sided)
Input hopper capacity	70 cards(0.76mm)	100 cards(0.76mm)	70 cards（0.76mm）	100 cards（0.76mm）
Reject tray capacity	30 cards(0.76mm)
Card Material	PVC cards, Composite cards(PVC+PET), rewritable cards
Card Size	ISO CR80（53.98mm×85.60mm）
Card Thickness	0.254mm—1.05mm
Operating System	Windows，Android，Linux, or Windows+Android
Hardwares	All the hardwares necessary to the corresponding operating system

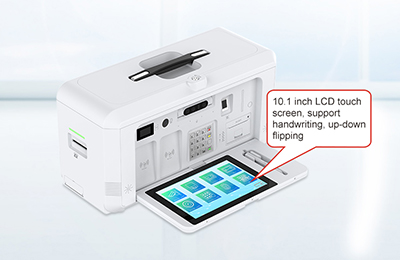

Front Screen	10.1 inch LCD touch screen, support handwriting, up-down flipping

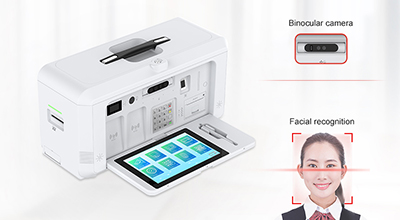

Optional Multi-function Module	1.RFID card reading 2.Mental PIN pad: support on-board encryption & 3DES encryption 3.Fingerprint Module: Realize fingerprint acquisition, feature processing, fingerprint comparison and other operations, certified by China . 4.Binocular camera: Facial recognition, optional face liveness detection, facial recognition, etc. 5.Environmental Camera:Monocular camera for environmental monitoring 6.Lithium battery pack: optional lithium battery pack with capacity 10.5Ah，14.54V 7. Chip card encoding module: Contactless & contact dual interface encoding, ISO7816/ISO14443 TYPE A/B; PC/SC Load financial firmware issued by China Social Security Institution 8. Magnetic stripe card encoder : Support ISO7811 hico&Loco 1/2/3 tracks encoding 9. Barcode scanner: Support barcode, QR code identification 10. WIFI: Dual-band 2.4G/5G, band IEEE 802.11b/g/n; network speed: 300Mbps 11. Bluetooth: Optional bluetooth 4.0 or above, transmission distance 6-10 meters 12. Remote communication module: Optional 4G or 5G remote communication module, card plug in to access the Internet 13. Receipt printer: for printing receipts 14. Card-Swallowing Module: Designed for image scanning of ID cards, passports, and other credential cards, as well as readingembedded chip information.
Software	According to operation system and customer needs, all the related Software Development Kit are supplied, including demos and code examples
Power Supply	Power adapter，AC100-240V 50/60Hz， DC24V 5A
Dimensions & Weight	517mm(L)×220mm(W)×278mm(H) ，11.5Kg
Security	Locks: protect cards, ribbons, 4G/5G chips and reject tray from being stolen
Operating environment	1. Regular temprature: 15℃-30℃（59-86℉), 20%-65% RH non-condensing 2. Lowest/ Highest temprature：0℃(32℉)/40℃(104℉), 20%-65% RH non-condensing
Storage environment	Temp：-5℃-70℃(23-158℉), 20% - 70% RH non-condensing and ventilated environment
